Sintered Bronze Bushes



Sintered Bronze Bushes

Get Free Quote Standard Dimension Chart    Technical Data Sheet

Sintered porous metal bearings are powder metallurgical parts, the starting materials are obviously metal powder. The metal powder used are specifically produced to give flow and compacting characteristic and at the same time ensure best mechanical strength, grade or porosity for oil retention and self lubrication in its finished form.

Sequence of Production :
Forming (or compacting)
Sintering
Sizing
Oil Impregnation

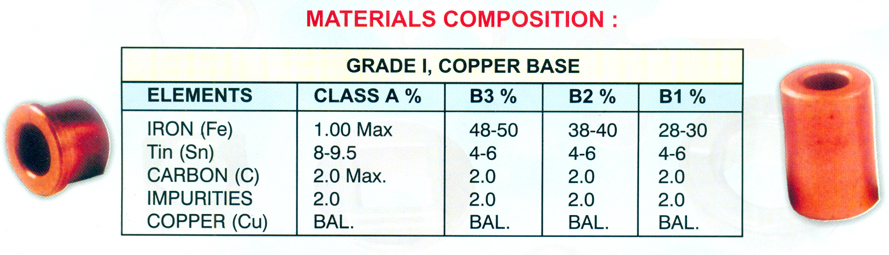

Material (as per IS: 3980 : 1982) :
Sintered Bronze
Iron Sintered

Range :
Plain & flanged bushes, self aligned bushes, solid rod, plate, sintered bushes, oilite bushes, self lubricated bushes, sintered bearings and different profile components as per drawings / samples.

Applications :
Sintered bronze bushes are used for high speed application ( up to 18000 rpm)
Iron Sintered bushes are used for speed (up to 3000 rpm)
